Cylindrical Rubber Buffer With External Threads

Product Details

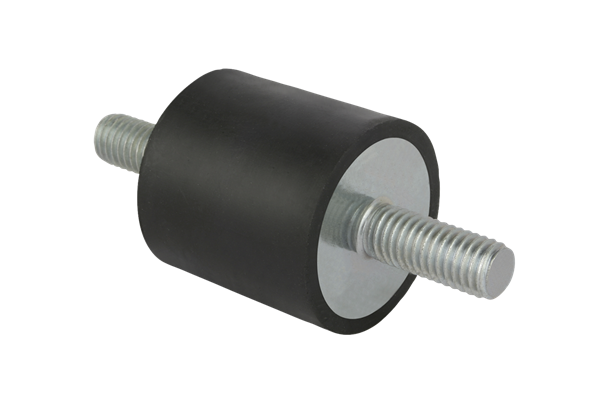

Type A Cylindrical Rubber Buffer

From Kipp, these rubber-to-metal buffers are essential components for the elastic mounting of industrial machinery. They serve as vibration isolators, protecting sensitive equipment from structural noise and mechanical shock.

Features and Benefits

• Natural rubber elastomer (Shore 55A medium hardness)
• Grade 5.6 steel or stainless steel threaded studs
• Type A design with external threads on both sides
• Effective structural noise reduction and impact absorption
• Operating Temperature: -30°C to +80°C

Applications

Cylindrical buffers are widely used as mountings for vibration-heavy aggregates. Typical applications include:

• Electric Motors and Generators
• Air Compressors and Industrial Pumps
• Materials Testing Machinery

Frequently Asked Questions

Can these buffers be used in outdoor environments?

The natural rubber is durable; however, sheltered operation is recommended to prevent excessive UV exposure. The metal parts are zinc-plated for corrosion resistance.

What is Shore 55A hardness?

Shore 55A represents a medium hardness rubber, offering a balance between dampening flexibility and load-bearing stability.

Note

These buffers are standard construction elements for elastic mounting in mechanical systems.

Standards

Shore 55A / Natural Rubber
